SM-FS746
Polypropylene handle is compact and will not contribute to particulate or organic contamination.
More than 100 types swab can meet your different application .

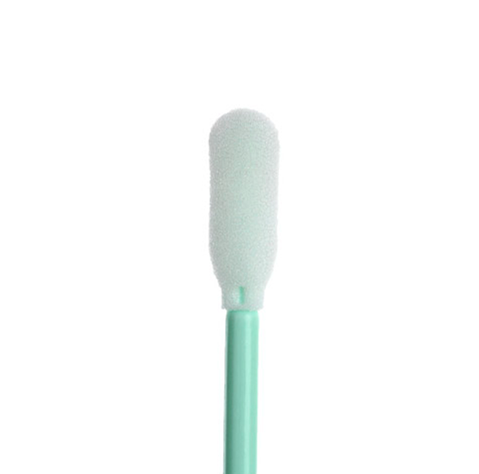

Cleanroom Foam Swab
Item No.: SM-FS746

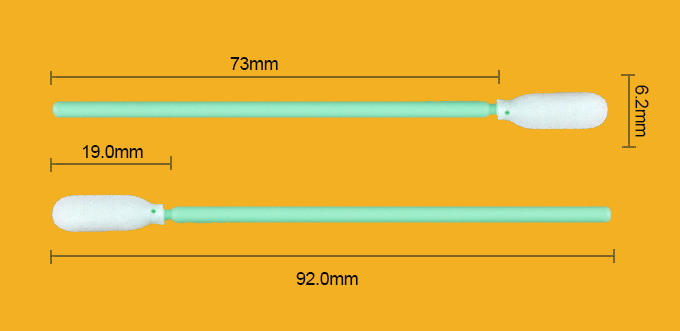

| Part NO. | head material | head width | head thickness | head length | handle material | handle width | handle length | total length | packing |
| SM-FS746 | sponge | 6.2mm | 5.1mm | 19.0mm | polypropylen | 3.2mm | 73.0mm | 92.0mm | 500 swabs/bag 20bags/ctn |
Foam Cleaning Swab Features
Precision Tip
Easy to clean small, slotted areas ,hard to reach place
Washed by EDI pure water
Low non-volatile residue
Low in both particles and ion content
Thermal bonded
No contaminating adhesives or coating produce second pollution
Cleanroom
Laundered and packed under an ISO Class 100 Cleanroom
Cleaning Swab Application
Micro-mechanical cleaning, Remove contamination from connectors and disk drives, Effectively clean small, hard to reach areas with solvents such as IPA
Remove flux residue and excess materials, eneral purpose cleaning.
Contamination Characteristics:
Paticles, readily releasable
Particles 0.5um <6000 counts/swab
Non-volatile residue
DI water <0.15mg/swab
IPA <0.40mg/swab
Ion content
Chloride <0.90 ug/swab
Sulphate <0.40ug/swab
Total anions <1.3 ug/swab
Organic contamination
No detectable silicone, amide or DOP
