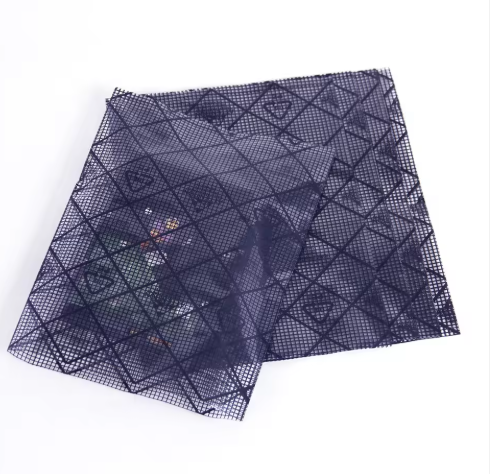

Conductive Grid Bags

The conductive Grid bag can keep static-sensitive components away from the potential static danger to the largest extent. Its special four -layer structure can create such effect as an inductive cover to separate the goods inside from the static field.
Furthermore, the inner layer is made from ethane which can remove the static and avoid static generation inside.
In addition, this kind of shielding bag is grey transparent, so the goods inside can be easily recognized from outside. also the surface resistance. Applicable to pack electronic product swhich are sensitive to static, such as PC board, IC integrated circuit CD driver, HD or other electronic components.

Conductive Grid Bags

Item No.: SGB0622

Anti-static PE Bag printed with network black conductive oil

Offer excellent conductive function

Used for packing PC board, IC, CD driver, HD, ETC

Surface resistance: 104-106ohms

No
Item
Unit
Test standard and result
1
Metal layer resistance
Ohm/sq
<100
2
Surface resistivity
Ohm/sq
104-106
3
Time for static remova
5000-0V
<0.02 sec FTMS 101 B Method 4046
4
Metal layer optical transmission
Optical density
40%-70%
5
Puncture resistance
P.S.I
ASTM D3420 >12 lbs,50N
6
MVTR
gm/100in-2/24hrs
ASTM E 96 <0.3
7
Heat sealing Time
S
0.5-3.5 seconds
8
Hot sealing temperature
F
250-375F
9
Seal strength
N/15mm
ASTM D-882-91 ≥12 lbs/inch
