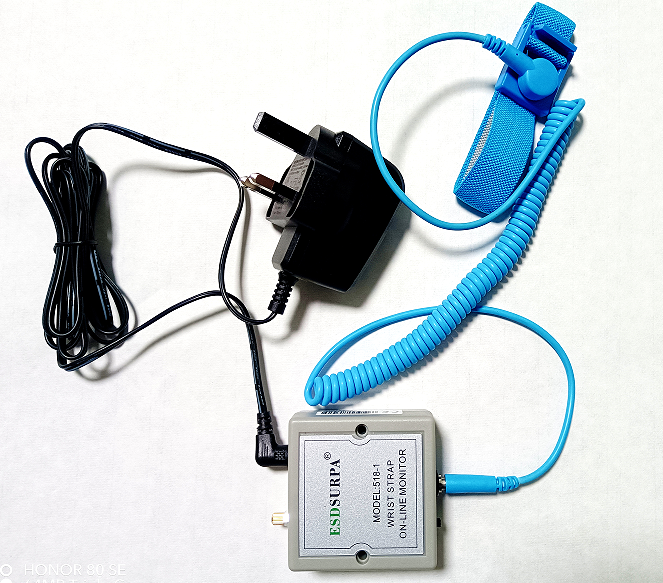

  • 518-1.6.png

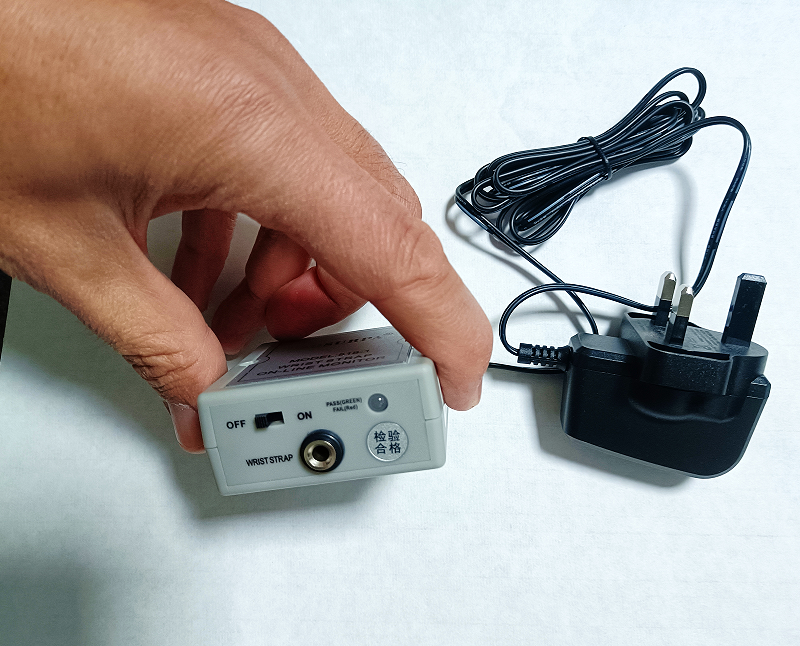

  • 518-1.8.png

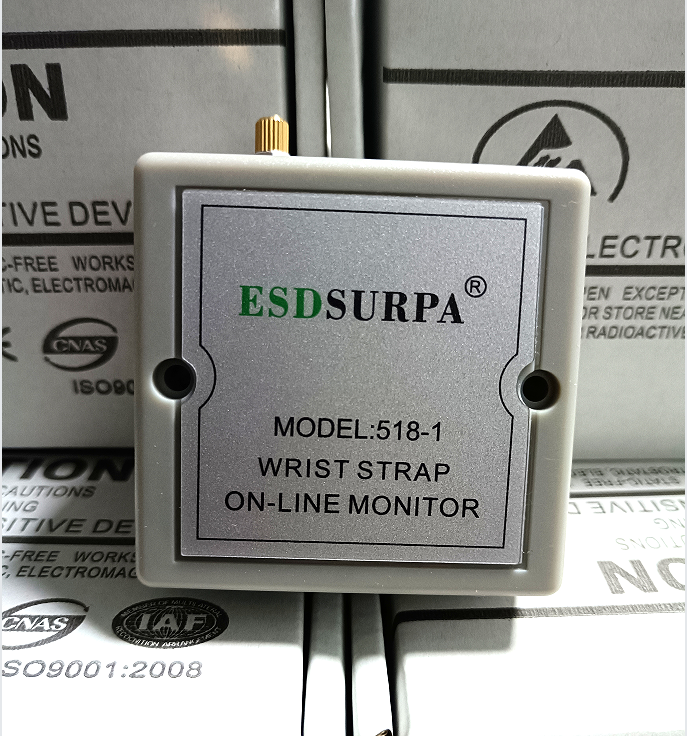

  • 518-1.5.png

Surpa 518-1

In the electronics industries, electro-static is the major concern to all manufacturers.The wrist strap is a device specifically designed to solve this problem. It draws static from the human body continuously and has an instant warning with lamp and alarm to warn the user should the wrist strap fails or the grounding is disconnected.
Features:
No checking is required
Instant warning of wrist strap failure, improve production quality
Highly reliable, easy and convenient
Small and handy, easy and convenient
Low price, save cost
For your convenience, you can use any wrist strap with banana plug in the market.

ESD Wrist Strap Online Monitor

Item No.: 518-1

Model
518-1
518-2
Output
AC6V 0.3A
AC6V 0.3A
Power consumpfion
1.8W
1.8W
Size
61mm*58mm*28mm
110mm*58mm*28mm
Weight
62g
110g
Precision
1.4MΩ+5%
1.4MΩ+5%
Accessory
ACpower adapter-1unit Grounding cord-1 pc
AC power adapter-1ynit Grounding cord-2 pcs
