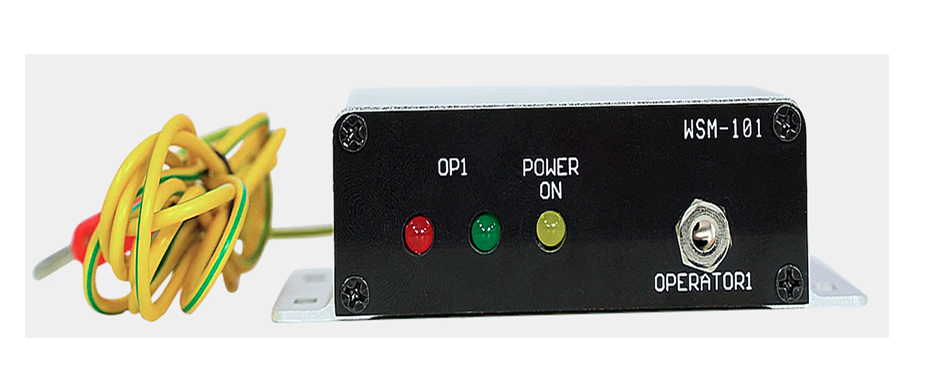

WSM-101

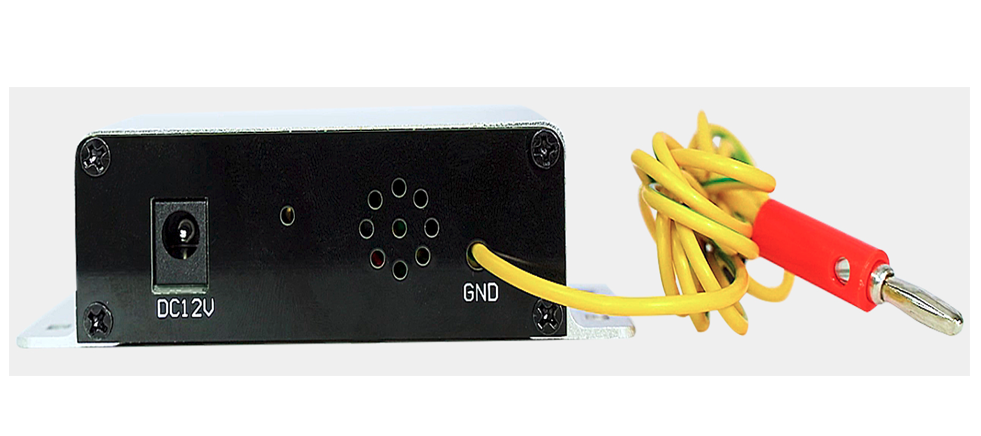

Connect the instrument ground wire factory ground wire
Power on, power indicator light on
Connect wrist strap running indicator light on
Wrist strap artificial or unexpected incorrect wearing, The abnormal indicator light turns on the red light and sends a buzzer alarm
Manual or accidental disconnection of ground wire when connection, The abnormal indicator light turns on the red light and sends a buzzer alarm

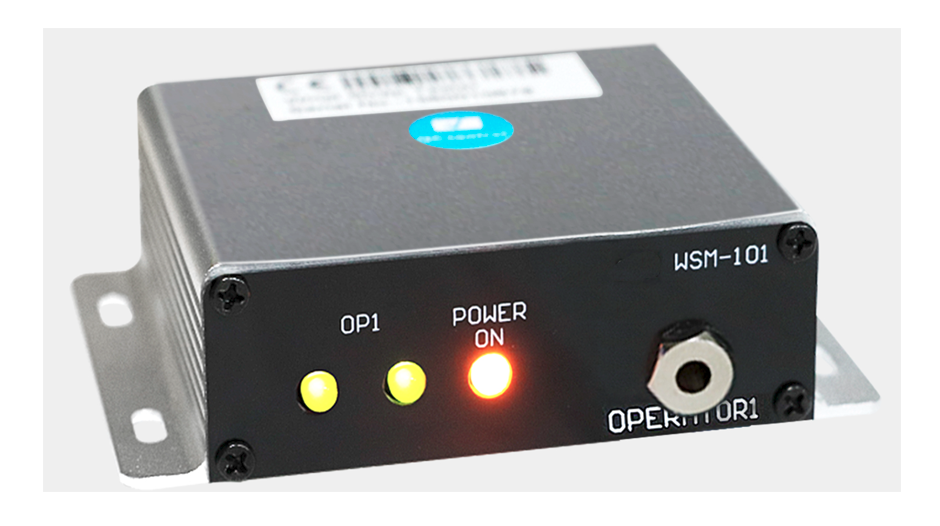

ESD Wrist Strap Online Monitor
Item No.: WSM-101
| Item No. | WSM-101 |
| Alarm indication | LED indicator (yellow standby, green normal, red alarm) |
| Alarm sound | 10times (max) 5seconds |
| Alarm limit | 1.5m (factory preset) |
| Power supply | power adapter AC100~240V, 50/60HZ, DC12V, 100mA |
| Host outline size | L105*W78*H28mm |
| Wrist strap open circuit voltage | 0.7VDC, ±0.1VDC, <2mA |
| Usage environment | 0℃-60℃, indoor use |
| Warranty period | 1 year |
| Authentication | CE FCC |
Real time detection of system resistance of single-wire wristband
No monitoring instrument off function, insert the wristband for monitoring
When the wristband is inserted into monitoring instrument, an alarm is triggered when it is worn abnormally
When the wrist strap is pulled out, monitor does not alarm
When the wristband is disconnected or the contact is not good, the instrument will give an alarm
At the same time, monitor a station wrist strap and monitor the ground wire of the machine
The alarm value of the wrist strap is 1.5M(factory preset), and the measurement accuracy of the instrument is ±20%
When the monitor is unqualified, there is a flashing LED red light and a beep alarm prompt
Beautiful appearance and strong anti-interference ability
