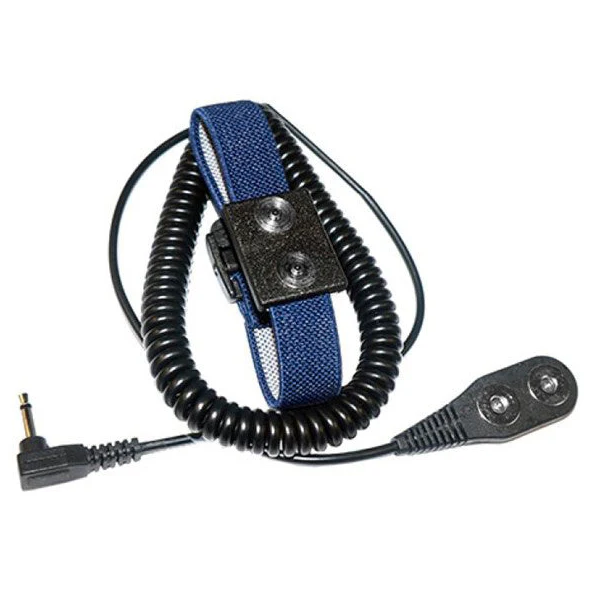

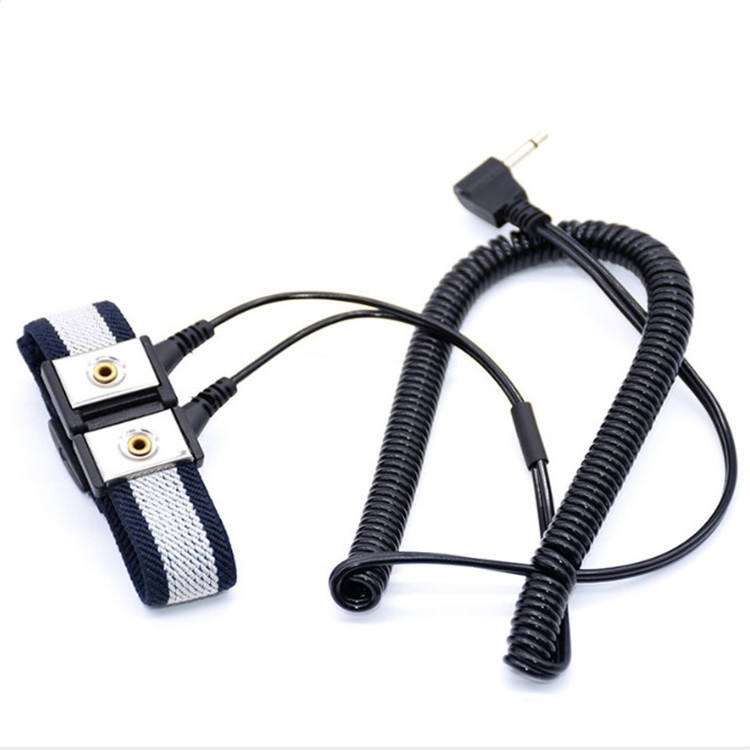

Dual Wire Fabric Wrist Straps

The Dual-Wire Thermoplastic Wrist Strap, designed for reliable electrostatic discharge (ESD) protection in various environments.Dual Wire Wrist Straps can help prevent damage to sensitive electronic components that are being assembled or packaged within a protected area. The ground straps have been specially designed to work with constant monitors and effective at grounding a person to reduce the damage caused by static generation. They are an essential part of many electronic production companies, as well as laboratories, clinical environments, precision engineering environments – and should always be seen as another vital aid in an ESD protective area. Wrist Straps are used to ground a person to minimize effects of electrostatic charges being built up on the body and are used with constant monitors. Grounding straps come in many colors with lots of coil cord combinations. Typically there is a 1 meg resistor included for safety.

Dual Wire Fabric Wrist Strap

Item No.: SWS1999

WRIST STRAP:

Length: 220mm

Inner: elastic nylon with silver threads

Ourter: elastic nylon, insulative

Color: light blue, deep blue, etc

Resistance: 150-200ohms/inch

Plastic parts: ABC/PC

Back plant: 304stainless steel, non-allergenic

COIL CORD:

Conductor: 7 strands twin tinsel wire

Jacket insulation: 90 shore a polyurethane

Cord diameter: 0.08"

Plug: right angle mono plug

Molding material: polyurethane

Color: black, blue, grey, etc

Coil cord lengths: 6ft, 10ft, 12ft, etc

Snap sizes: 4mm, 7mm, and 10mm
