Products Introduction

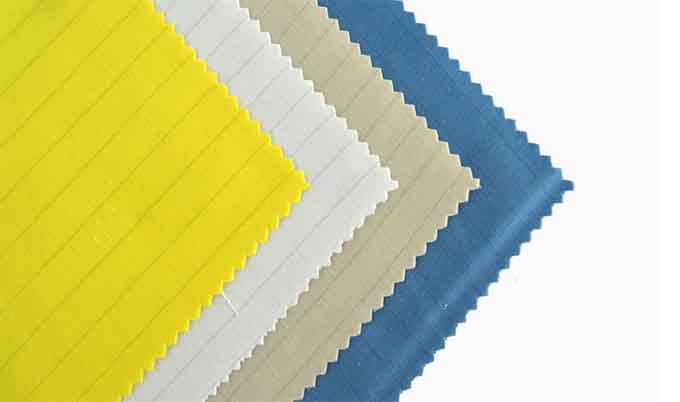

ESD TC Fabric

Anti-static T/C Fabric
Item No.: SEG2012

The material is made from ester fibre with filament and imported conductive fibre. Area of static and sensitive, clean and purification area of C10-C10000. Effective removing the static from human body, and antistatic permanent.
Specifications
Material: 65% Polyester+ 35% Cotton
Size :Width 150cm
Standard Weight 155gsm
Pattern: 12mm Strip
Color: White, Blue, Green, Yellow, Pink, etc.
Style: 1/2 twill
Yarn Count: TC32s* TC32s
Density: 130ends/inch* 70ends/inch
Surface res. 1x106-1x109Ohm/sq
Static decay time  <0.17 sec.
Permeability to air: 15cm3/cn2/sec
Life more than 60 Repetitive Washings
Applying cleanroom  100-10000 Class
Fabric electric charge density  ≤2.2uc/m2
Bearing pull  29.4 N(newton)
