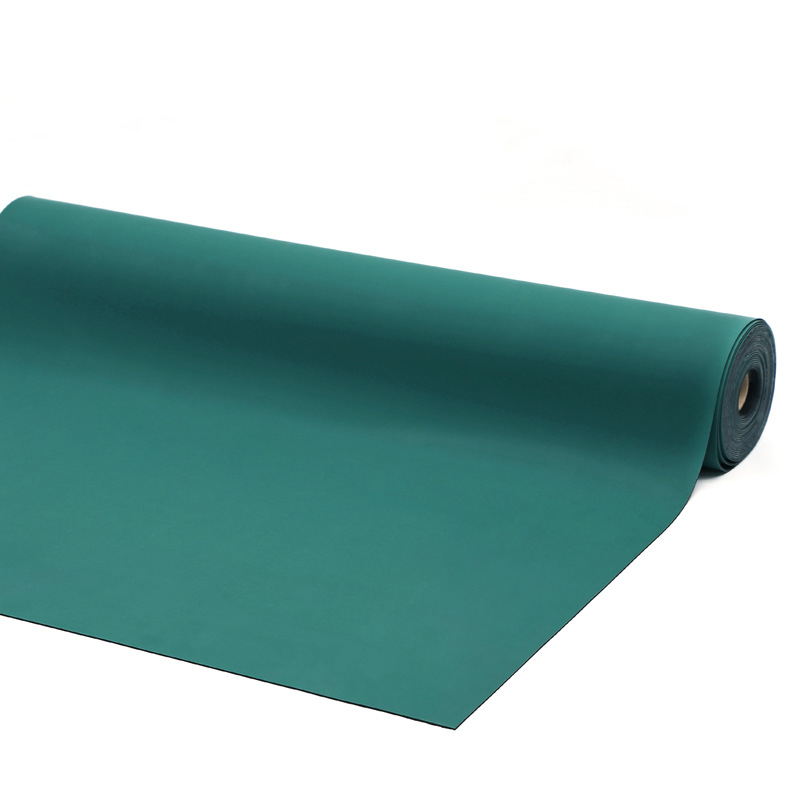

Green color esd mat
Light Green Anti-static Mat
Item No.: SRM2002B-21

ESD Table Mat made of anti-static(conductive) and static-dissipative materials as well as synthetic rubber. The surface layer is a 0.5mm thick static-dissipative layer. The bottom layer is a 1.5mm conductive layer. Generally, 2mm thick double-layer structure is used.
Application: electronic factories,laboratory room,communicate industry, Sensitive electronic equipment,Integrated Circuits,Computer Rooms and E.P.A Units,Control rooms etc.

Specifications
Physical properties:
Elongation: 188%
Elastic resilience: 14%
Tearing strength: 20.6KN/m
Tensile strength: 3.6Mpa
Thickness: 2.0mm
Heat resistance: No soldering resistance
Standard Sizes (W*L)
0.6*10m/0.8*10m/0.9*10m/1.0*10m/1.2*10m
Thickness: 2mm/3mm
Color Available
Green, Blue, Grey, Black,etc
ESD Properties
Resistivity of top layer: 107-9Ω
Resistivity of bottom layer : 103-5Ω
Volume resistance: 105-8Ω
Decay time : < 0.5S
